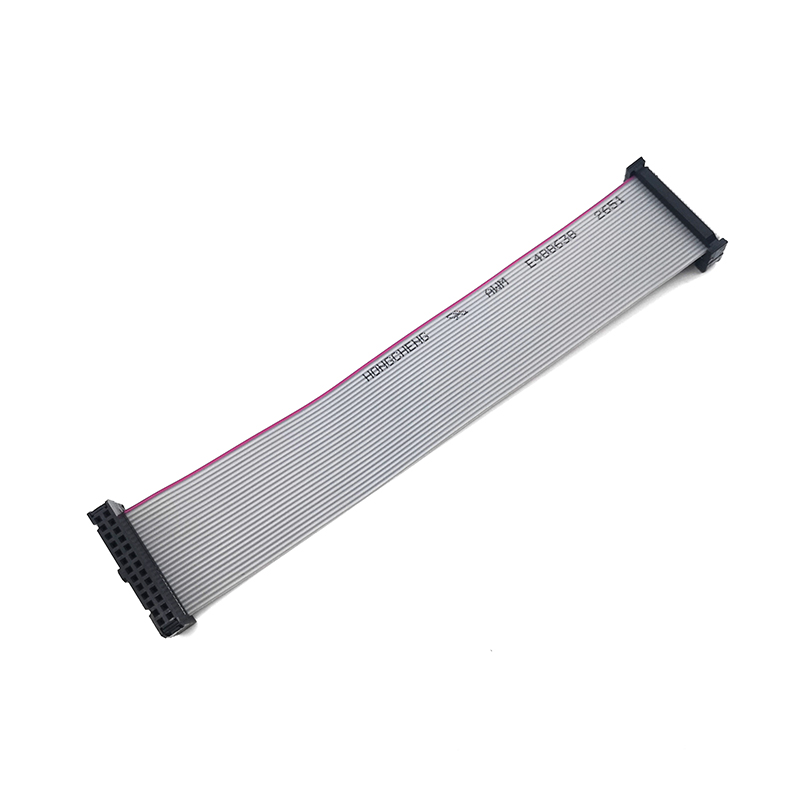

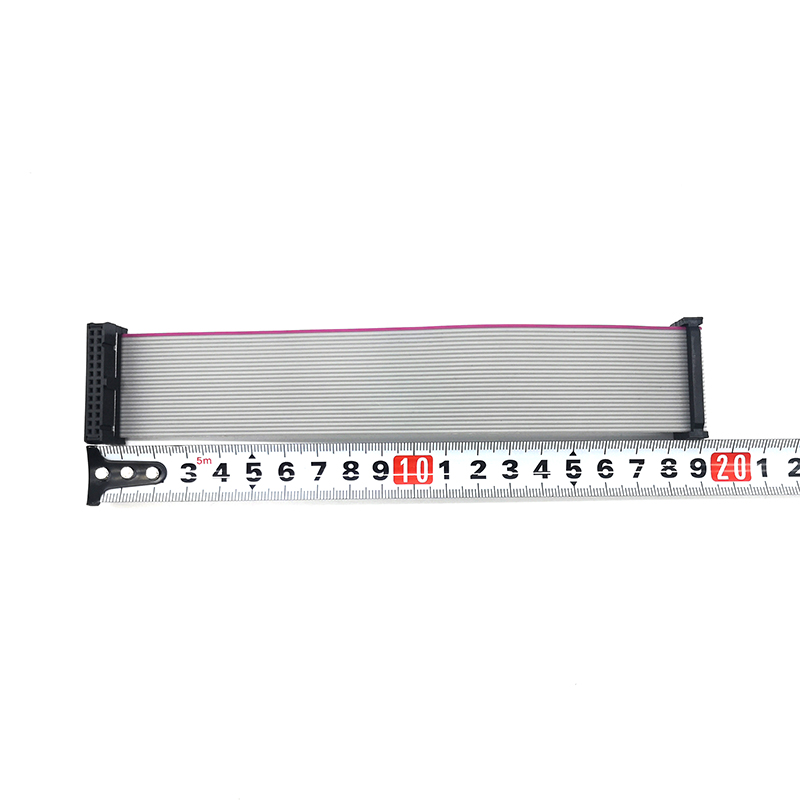

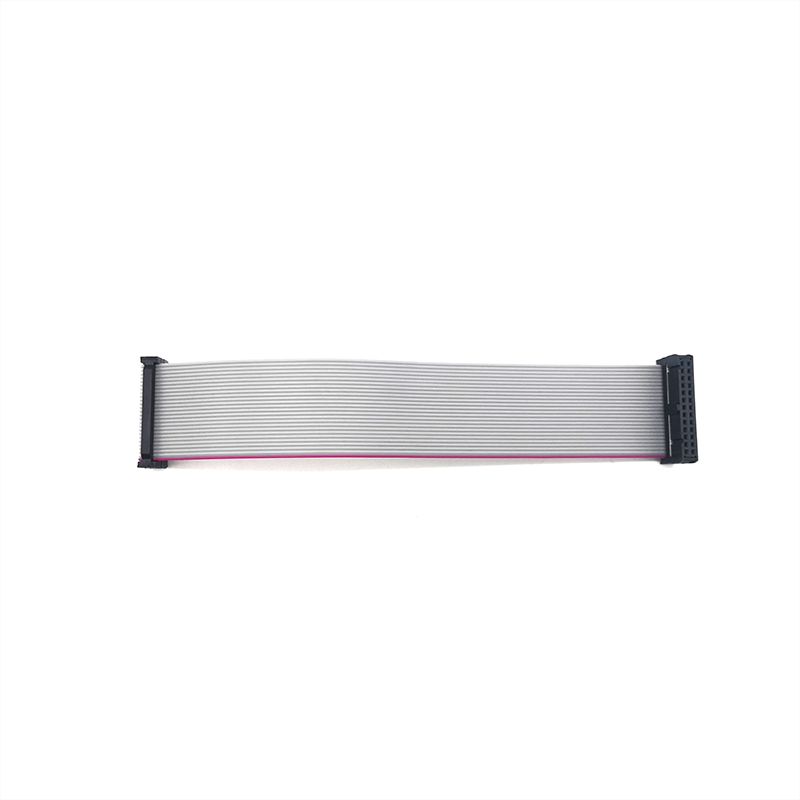

Short IDC Ribbon Cable Jumper
Short IDC flat ribbon cable jumper for nearby board headers, controller modules, and space-limited internal routing.
- Short jumper structure
- Easy routing in compact spaces
- IDC termination on both ends
- Custom spacing support
Short IDC Ribbon Cable Jumper Overview
Short IDC flat ribbon cable jumper for nearby board headers, controller modules, and space-limited internal routing.
This short IDC flat ribbon cable jumper is intended for nearby board headers, controller modules, and short internal signal links where a flat cable is easier to route than a wire bundle. ENJOE supports short 2.54 mm IDC jumper builds with gray flat ribbon cable, common 8-40 pin layouts, and custom spacing according to your actual installation requirement.
Short jumper structure
Easy routing in compact spaces
IDC termination on both ends
Custom spacing support
Key Attributes
Common sourcing attributes for this cable type. Final build is confirmed by approved drawing, sample, and project requirements.
| Connector Format | IDC to IDC |
|---|---|
| Connector Pitch | 2.54 mm IDC common |
| Ribbon Cable Pitch | 1.27 mm flat ribbon cable common for double-row IDC |
| Pin Options | 8-40 pin or customized |
| Cable Gauge | 26-30 AWG common, 28 AWG widely used |
| Cable Type | Gray flat ribbon cable |
| Cable Length | Short custom length based on board spacing |
| Pinout | As per drawing or request |
| Application | Nearby board headers, modules, compact internal wiring |
These attributes are presented as common project configurations for quotation and sourcing reference. Final connector layout, pin count, pinout, cable length, and packaging follow the approved project requirement.
Custom Options
OEM and project-based changes can be arranged according to your drawing, header layout, and packaging request.
Exact short cable length
8-40 pin or customized layout
Gray flat ribbon cable common build
Connector exit direction review
Part number or set labeling
Common Applications
This cable type is commonly used in the applications below, depending on board layout, interface style, and installation space.
Industrial Automation & Control Systems
Home Appliances & Consumer Devices
Quality Inspection
Each harness can be checked before shipment according to project requirements.
100% continuity test
Checked according to project requirements before shipment.
Exact length verification
Checked according to project requirements before shipment.
Connector orientation check
Checked according to project requirements before shipment.
Polarity stripe confirmation
Checked according to project requirements before shipment.
IDC press inspection
Checked according to project requirements before shipment.
What We Need for Quotation
To review your project faster, please send the sourcing and technical details below.
- Drawing or sample photo
- Cable length and pin count
- Connector type or header layout
- Pinout or wiring sequence
- Application and installation position
- Working voltage / current if available
- Estimated order quantity
- Labeling, packing, or sampling requirements
Free Sample for Qualified B2B Projects
For real B2B projects with clear requirements, ENJOE can prepare one custom sample for evaluation. The customer covers the international shipping cost.
View Sample ProgramFrequently Asked Questions
Can this IDC jumper be made to an exact short length?
Yes. Short jumper builds are commonly customized to actual board spacing or cabinet layout so the assembly does not leave unnecessary slack.
Is it suitable for compact internal wiring?
Yes. This type is intended for compact internal signal routing where round wire bundles would take more space and complicate assembly.
Can one end be rotated to match different header directions?
Yes. Connector exit direction and key orientation can be reviewed against your board layout before sampling.
Do you offer keyed housings and strain relief for short jumpers?
Yes. These features are often added when the cable will be handled during service or when header orientation must be mistake-proof.
What testing is performed before shipment?
Typical control includes 100% continuity testing, pinout confirmation, visual termination inspection, finished-length check, and packaging inspection.
