Small-Pitch Connector Wire Assembly

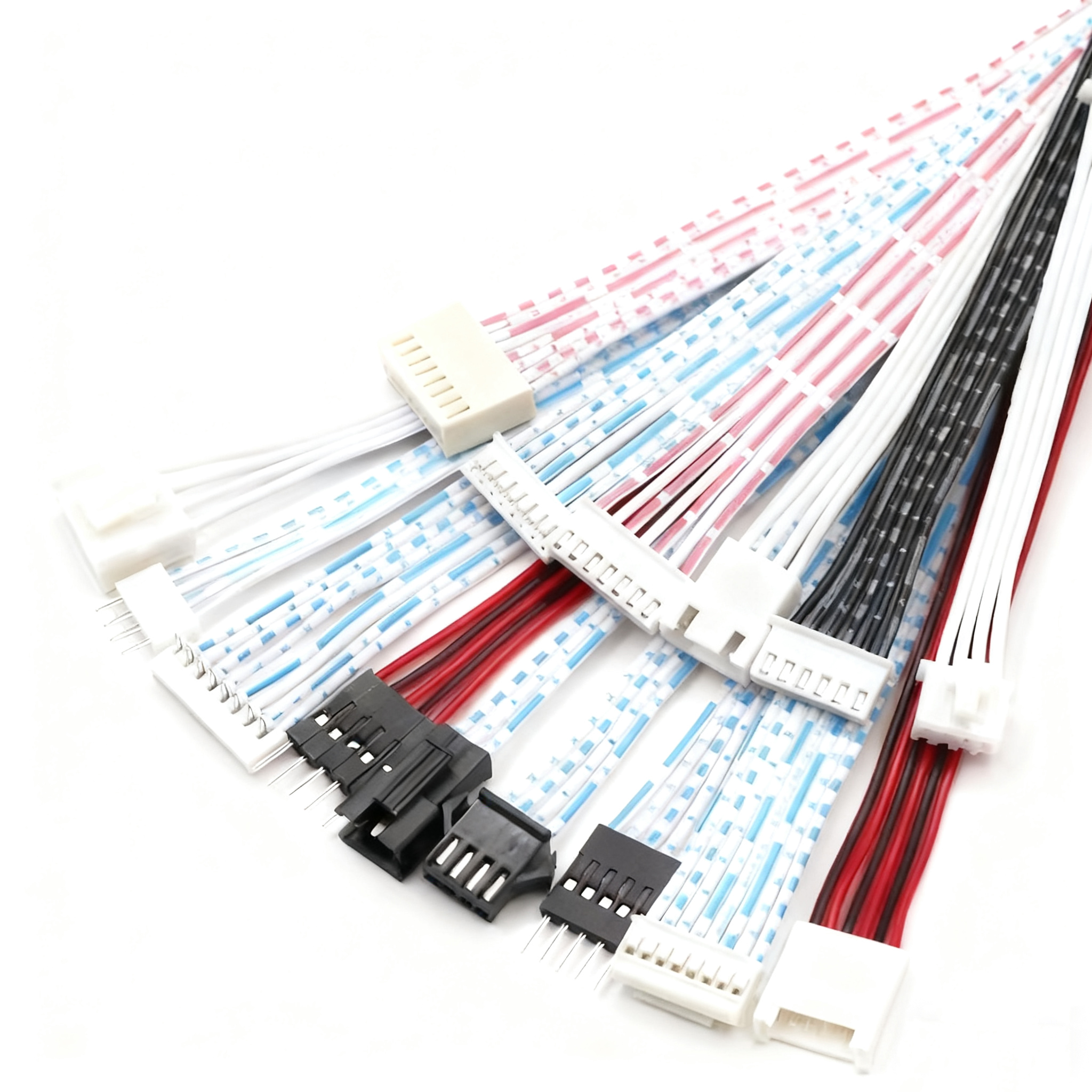

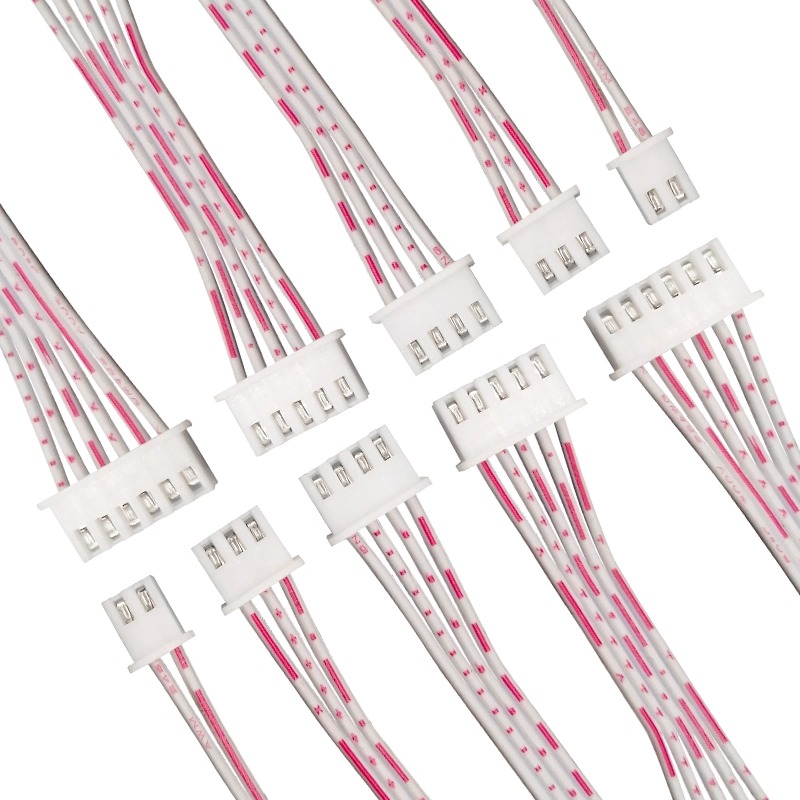

Custom small-pitch connector wire assemblies for board connection, appliance wiring, controller modules, and compact internal equipment interconnects.

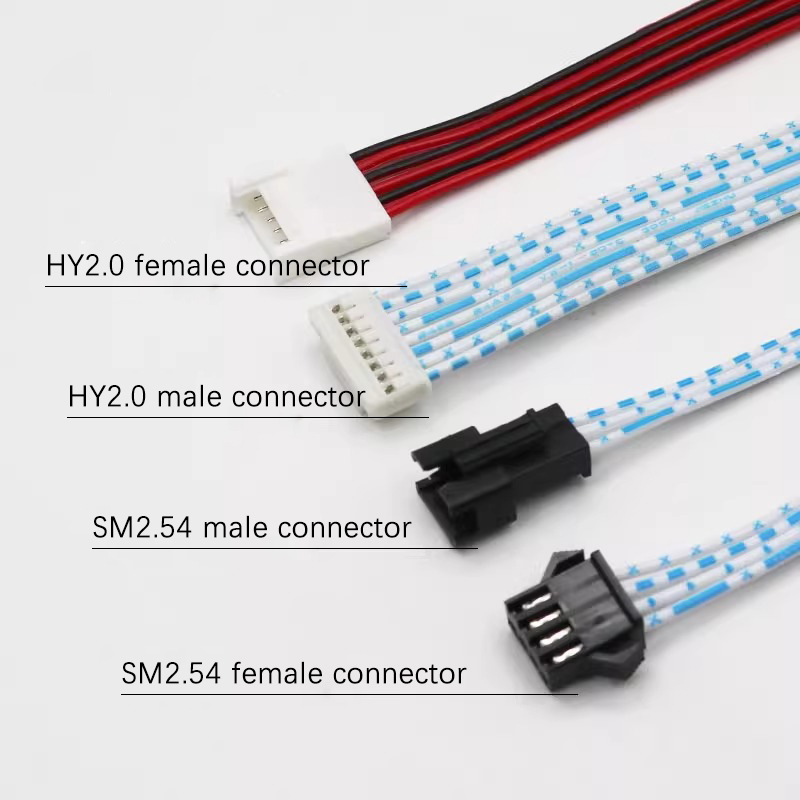

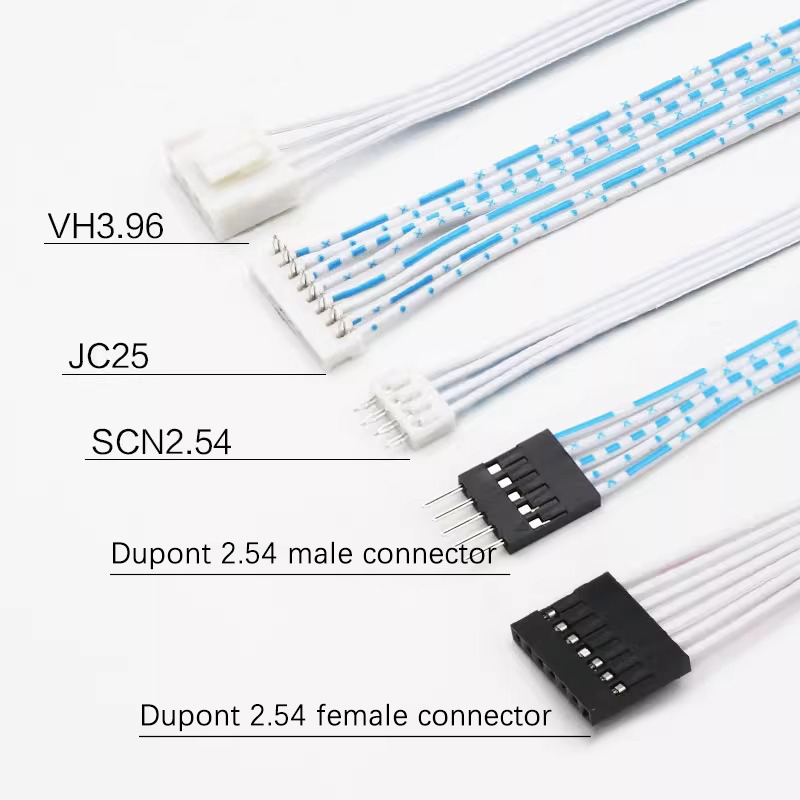

- Supports Dupont 2.54, XH2.54, PH2.0, VH3.96, KF2510, HY2.0, SM2.54, JC25, SCN2.54, and similar connector series
- Male, female, mixed-end, and housing-to-housing lead-wire options
- Flat parallel wire and red/black discrete lead-wire builds
- Custom pin count, finished length, and wiring sequence support
- Suitable for compact board, module, and internal equipment wiring
Small-Pitch Connector Wire Assembly Overview
Custom small-pitch connector wire assemblies for board connection, appliance wiring, controller modules, and compact internal equipment interconnects.
This small-pitch connector wire assembly page covers common low-voltage lead-wire builds using connector series such as Dupont 2.54, XH2.54, PH2.0, VH3.96, KF2510, HY2.0, SM2.54, JC25, SCN2.54, and similar approved formats. ENJOE supports male and female connector combinations, housing-to-housing lead wires, flat parallel wire builds, red and black discrete lead wires, custom pin count, custom finished length, and project-based pinout confirmation for internal equipment wiring.
Supports Dupont 2.54, XH2.54, PH2.0, VH3.96, KF2510, HY2.0, SM2.54, JC25, SCN2.54, and similar connector series
Male, female, mixed-end, and housing-to-housing lead-wire options
Flat parallel wire and red/black discrete lead-wire builds
Custom pin count, finished length, and wiring sequence support
Suitable for compact board, module, and internal equipment wiring
Key Attributes
| Connector Series | Dupont 2.54 / XH2.54 / PH2.0 / VH3.96 / KF2510 / HY2.0 / SM2.54 / JC25 / SCN2.54 and similar |
|---|---|
| Connector Style | Male, female, mixed-end, or housing-to-housing lead wire |
| Pin Options | 2P-12P common, custom layout on request |
| Wire Type | Flat parallel wire and red/black discrete lead wire common |
| Wire Gauge | Project-based, commonly used for low-voltage internal wiring |
| Cable Length | Custom finished length |
| Pinout | As per drawing, sample, or approved sequence |
| Use Case | Board connection, appliance wiring, controller modules, and compact equipment interconnect |
Custom Options
OEM and project-based changes can be arranged according to your drawing, header layout, and packaging request.
Connector series and pitch selection
Male, female, or mixed terminal arrangement
2P-12P common and custom pin count
Flat wire or discrete lead-wire style
Wire color and project-based wire gauge
Finished length and stripping or tinning request
Pinout confirmation by drawing or sample
Labeling and packaging by part number or set
Common Applications
This cable type is commonly used in the applications below, depending on board layout, interface style, and installation space.
Industrial Automation & Control Systems
Home Appliances & Consumer Devices
Machinery & Special Equipment
Board To Wire Internal Equipment Wiring
Home Appliance And Consumer Electronics Harnessing
Controller, Display, And Small Module Lead Wire
Low Voltage Signal And Power Connection
Compact Machinery And Automation Interconnect
Quality Inspection
Each harness can be checked before shipment according to project requirements.
Connector housing and terminal matching inspection
Checked according to project requirements before shipment.
Crimp appearance and terminal retention check
Checked according to project requirements before shipment.
Continuity and polarity verification
Checked according to project requirements before shipment.
Length and pin-count confirmation
Checked according to project requirements before shipment.
Final appearance and packaging inspection
Checked according to project requirements before shipment.
What We Need for Quotation
To review your project faster, please send the sourcing and technical details below.
- Drawing or sample photo
- Cable length and pin count
- Connector type or header layout
- Pinout or wiring sequence
- Application and installation position
- Working voltage / current if available
- Estimated order quantity
- Labeling, packing, or sampling requirements
Free Sample for Qualified B2B Projects
For real B2B projects with clear requirements, ENJOE can prepare one custom sample for evaluation. The customer covers the international shipping cost.
View Sample ProgramFrequently Asked Questions
Can different connector series be arranged on the two ends of one lead wire?
Yes. ENJOE can review mixed-end builds such as different male and female housings or different connector series on each side according to your approved drawing or sample.
Do you support custom pin count and finished wire length?
Yes. Common small-pitch lead-wire builds can be adjusted for required pin count, finished length, branch layout, and mating direction.
Can the wire color and wire style be changed?
Yes. Flat parallel wire, red and black lead wire, white lead wire, and other approved color or wire-style changes can be reviewed according to project requirements.
Is this suitable for low-voltage board and appliance wiring?
Yes. This type of connector wire assembly is commonly used for internal low-voltage wiring between boards, displays, sensors, controllers, and compact electrical modules.
What information is needed for quotation?
Please send connector photos or series reference, pin count, wire length, wire style, pinout, expected quantity, and any labeling or packaging requirement.
More Products in This Category
Need a Custom Small-Pitch Connector Wire Assembly?
Send the connector series, pin count, finished length, wire style, pinout, and quantity. We can review the suitable small-pitch lead-wire build for your project.
