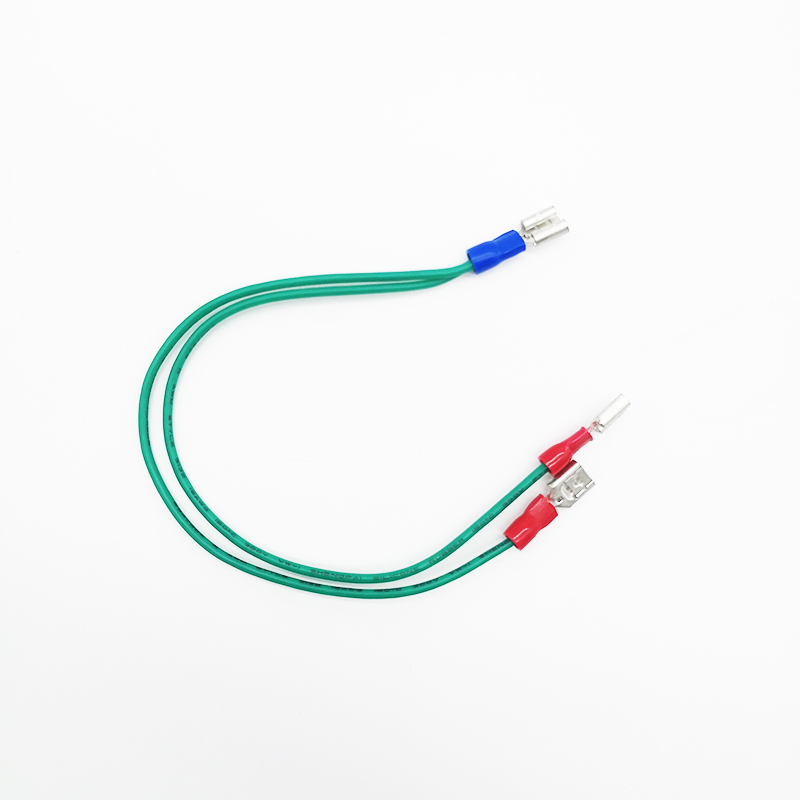

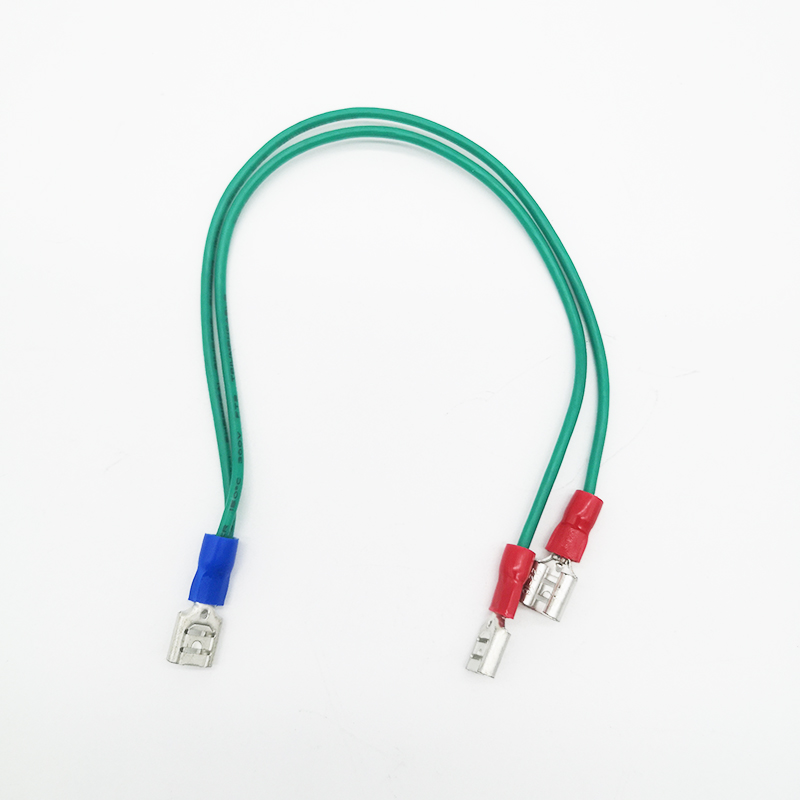

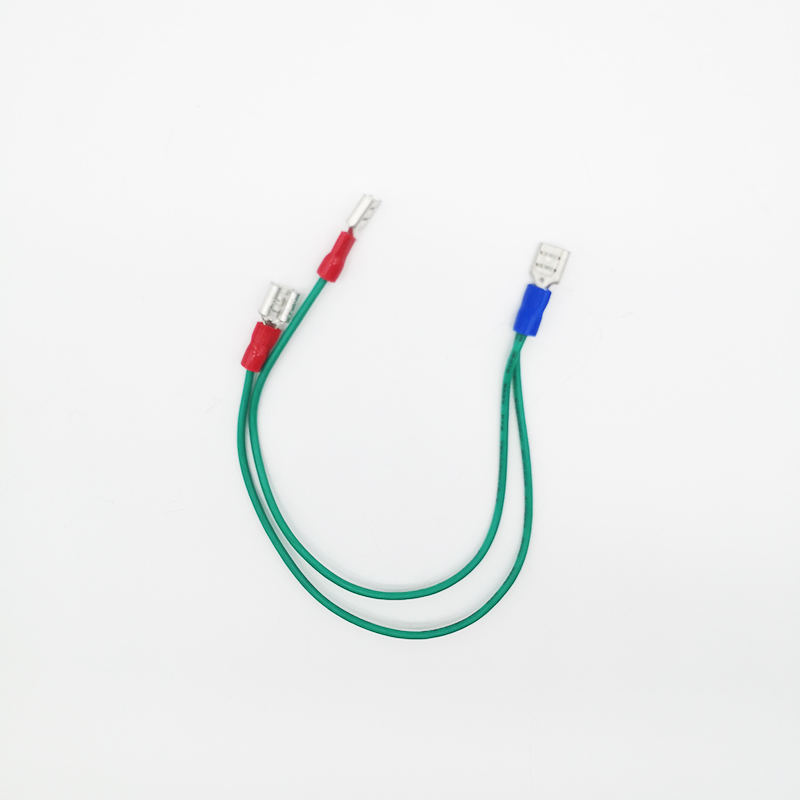

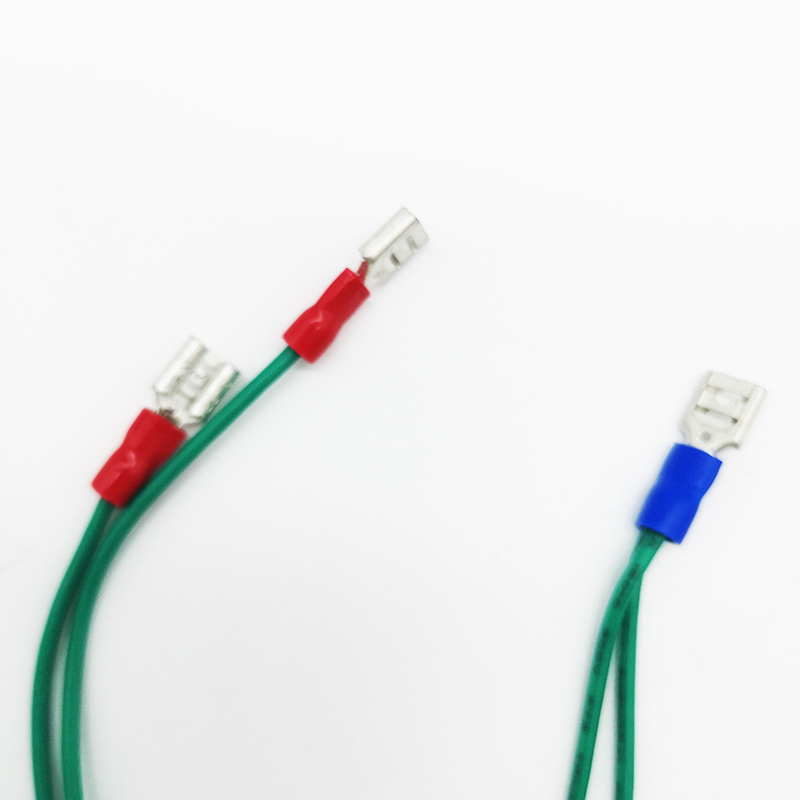

Spade Terminal Splitter Wire
Y-split terminal wire with insulated quick-disconnect spade terminals for compact branch connection and low-voltage equipment wiring.
- Compact one-to-two branch wire layout
- Insulated quick-disconnect terminal ends
- Custom terminal size and wire length
- Suitable for panel, appliance, and repair wiring
Spade Terminal Splitter Wire Overview
Y-split terminal wire with insulated quick-disconnect spade terminals for compact branch connection and low-voltage equipment wiring.
This spade terminal splitter wire is used where one quick-disconnect circuit needs to branch into two terminal leads for appliance wiring, panel repair, maintenance, and internal electrical connection. ENJOE supports custom branch length, terminal style, wire gauge, insulation color, and packaging for project-based assembly use.
Compact one-to-two branch wire layout
Insulated quick-disconnect terminal ends
Custom terminal size and wire length
Suitable for panel, appliance, and repair wiring
Key Attributes
Common sourcing attributes for this cable type. Final build is confirmed by approved drawing, sample, and project requirements.
| Wire Type | Branch lead wire with quick-disconnect terminals |
|---|---|
| Branch Structure | 1-to-2 splitter layout |
| Terminal Style | Insulated spade / quick-disconnect terminal common |
| Terminal Size | Project-based selection, 4.8 mm and 6.3 mm styles common |
| Wire Gauge | 18-22 AWG common, custom on request |
| Insulation | PVC insulated lead wire common |
| Wire Length | Custom branch length |
| Colors | Green wire shown, other colors available |
| Application | Appliance wiring, internal branching, panel repair, low-voltage connection |
These attributes are presented as common project configurations for quotation and sourcing reference. Final connector layout, pin count, pinout, cable length, and packaging follow the approved project requirement.
Custom Options
OEM and project-based changes can be arranged according to your drawing, header layout, and packaging request.
Terminal size selection
Female, piggyback, or project-based quick-disconnect styles
Wire length and branch spacing
Wire gauge selection
Wire color and sleeve color
Terminal material and plating options
Labeling and packaging
Common Applications
This cable type is commonly used in the applications below, depending on board layout, interface style, and installation space.
Industrial Automation & Control Systems
Home Appliances & Consumer Devices
Home Appliance Internal Wiring
Low Voltage Power Branching
Repair And Maintenance Lead Wire
Control Panel Quick Disconnect Wiring
Signal Or Auxiliary Branch Connection
Quality Inspection
Each harness can be checked before shipment according to project requirements.
Terminal crimp appearance inspection
Checked according to project requirements before shipment.
Terminal matching and size confirmation
Checked according to project requirements before shipment.
Wire length and branch spacing check
Checked according to project requirements before shipment.
Wire color and sleeve confirmation
Checked according to project requirements before shipment.
Final appearance and packaging inspection
Checked according to project requirements before shipment.
What We Need for Quotation
To review your project faster, please send the sourcing and technical details below.
- Drawing or sample photo
- Cable length and pin count
- Connector type or header layout
- Pinout or wiring sequence
- Application and installation position
- Working voltage / current if available
- Estimated order quantity
- Labeling, packing, or sampling requirements
Free Sample for Qualified B2B Projects
For real B2B projects with clear requirements, ENJOE can prepare one custom sample for evaluation. The customer covers the international shipping cost.
View Sample ProgramFrequently Asked Questions
Can this branch wire use different spade terminal sizes?
Yes. Quick-disconnect terminal size can be arranged according to your mating tab requirement instead of using only one fixed size.
Can the branch length and wire gauge be customized?
Yes. We can customize branch lead length, total wire length, conductor gauge, and insulation color based on your drawing or sample.
Is this suitable for appliance and panel repair work?
Yes. This type of terminal branch wire is commonly used for internal appliance wiring, low-voltage branching, control panels, and replacement lead-wire work.
Do you support different terminal arrangements on each end?
Yes. ENJOE can review mixed terminal configurations such as standard quick-disconnect, piggyback style, or project-based terminal combinations.
What do you need for an accurate quote?
Please send terminal type, mating tab size, wire gauge, branch length, insulation color, quantity, and any sample photo or drawing.
