Type 1 Extension Cable
Type 1 extension cable for AC charging reach extension with single-phase 16A / 32A / 40A / 48A build options.
- Type 1 plug and Type 1 socket extension build
- SAE J1772-2012 interface reference
- Single-phase 16A / 32A / 40A / 48A options
- 5 m standard length with custom-length support
- Custom cable length and logo support
Type 1 Extension Cable Overview
Type 1 extension cable for AC charging reach extension with single-phase 16A / 32A / 40A / 48A build options.

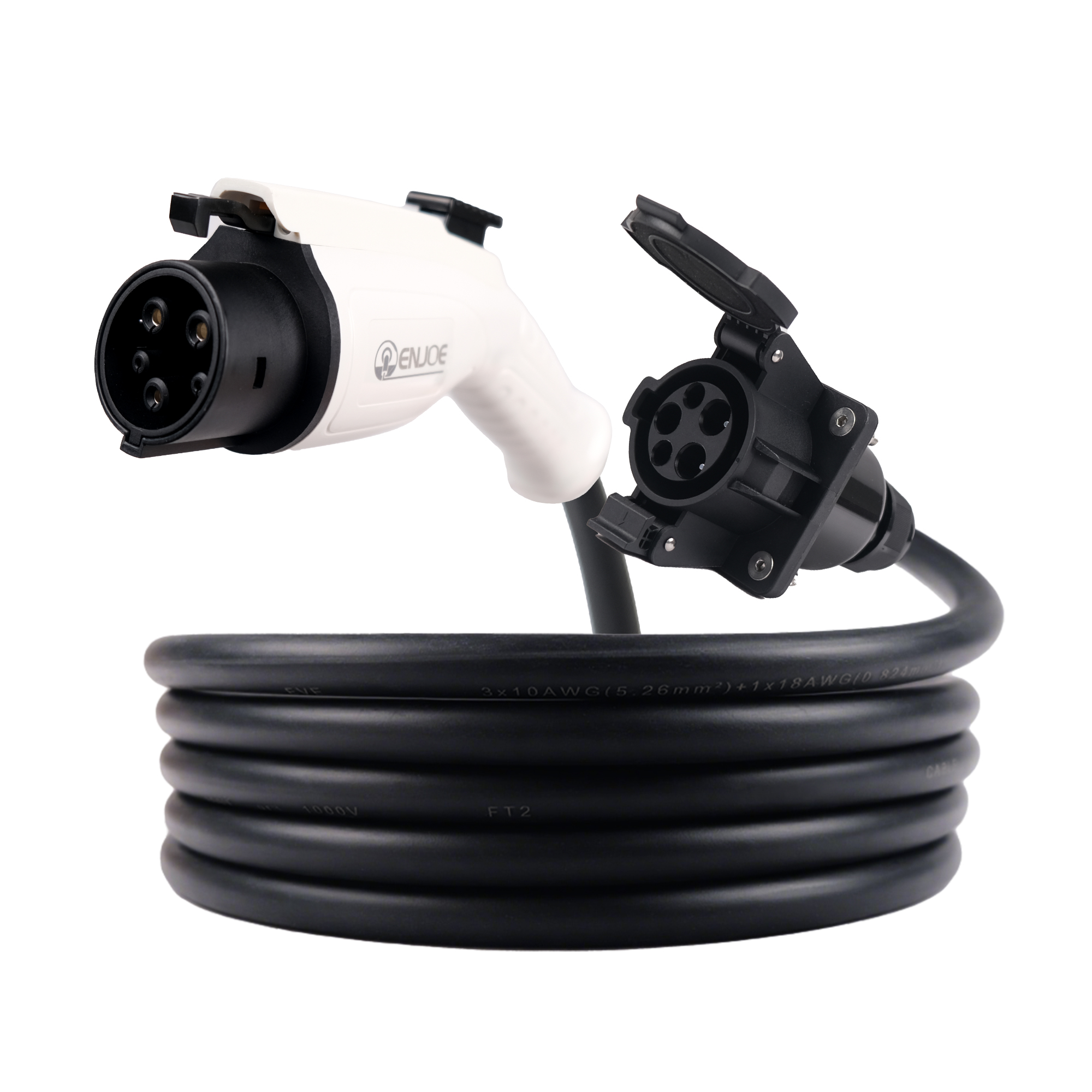

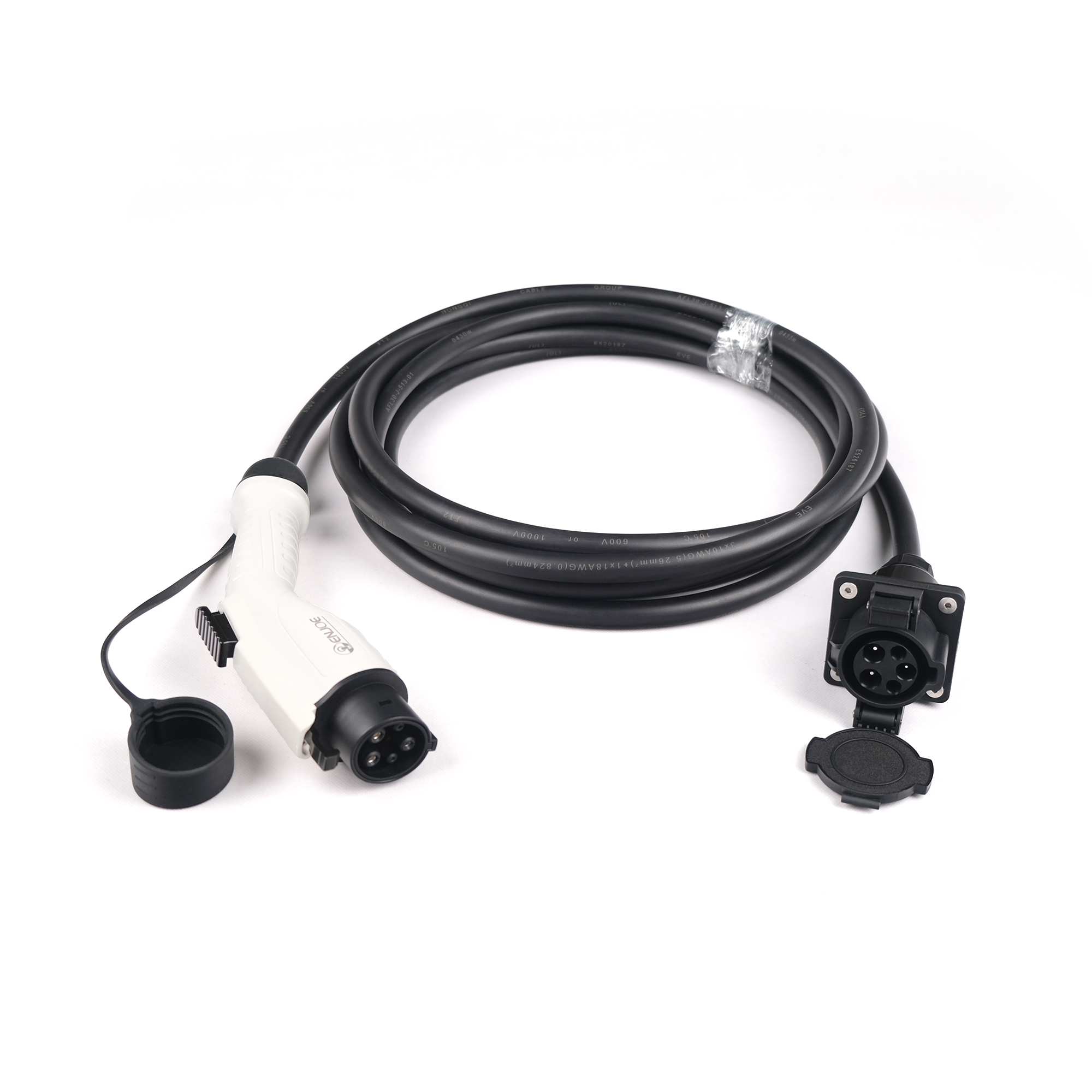

This Type 1 extension cable is used when additional reach is needed between the charging source and the vehicle-side connection point. The cable references SAE J1772-2012 interface requirements, uses a smooth shell structure, and can be supplied in 5 m standard length with project-based customization.
Type 1 plug and Type 1 socket extension build
SAE J1772-2012 interface reference
Single-phase 16A / 32A / 40A / 48A options
5 m standard length with custom-length support
Custom cable length and logo support
Key Attributes
| Connector Format | Type 1 plug to Type 1 socket extension cable |
|---|---|
| Standard | SAE J1772-2012 |
| Current Options | 16A / 32A / 40A / 48A |
| Phase Options | Single-phase only |
| Operating Voltage | 90 V - 260 V |
| Cable Length | 5 m standard, custom length available |
| Mechanical Life | No-load plug in/out >10000 times |
| Operating Temperature | -30°C to +60°C |
Phase & Current Options
| Phase | Rated Current (A) |
|---|---|
| 1-Phase | 16 |
| 1-Phase | 32 |
| 1-Phase | 40 |
| 1-Phase | 48 |
Custom Options
OEM and project-based changes can be arranged according to your drawing, header layout, and packaging request.
Cable length
Current rating 16 A or 32 A
Logo marking
Cable jacket style
Packaging
Common Applications
This cable type is commonly used in the applications below, depending on board layout, interface style, and installation space.
Energy & Power Equipment
Home Charging Reach Extension
Parking Position Charging Adjustment
Workshop And Test Charging Setup
Project Based AC Charging Extension Builds
Quality Inspection
Each harness can be checked before shipment according to project requirements.
Connector matching verification
Checked according to project requirements before shipment.
Continuity and open/short test
Checked according to project requirements before shipment.
Cable length inspection
Checked according to project requirements before shipment.
Shell and contact appearance inspection
Checked according to project requirements before shipment.
Final packaging check
Checked according to project requirements before shipment.
What We Need for Quotation
To review your project faster, please send the sourcing and technical details below.
- Drawing or sample photo
- Cable length and pin count
- Connector type or header layout
- Pinout or wiring sequence
- Application and installation position
- Working voltage / current if available
- Estimated order quantity
- Labeling, packing, or sampling requirements
Free Sample for Qualified B2B Projects
For real B2B projects with clear requirements, ENJOE can prepare one custom sample for evaluation. The customer covers the international shipping cost.
View Sample ProgramFrequently Asked Questions
Does this Type 1 extension cable support only single-phase builds?
Yes. This page covers single-phase Type 1 extension cable programs.
Which current ratings can be arranged?
Common single-phase options include 16A, 32A, 40A, and 48A according to the approved build requirement.
Can the finished cable length be customized?
Yes. The common build is 5 m, and custom lengths can be supplied after requirement review.
What details are needed for quotation?
Please send the required length, current rating, destination market, and expected quantity.
More Products in This Category
Need a Custom Type 1 Extension Cable?
Send the required length, current rating, connector requirement, and quantity. We can review the right Type 1 extension cable for your application.
