Type 2 EV Charging Gun Cable
Custom Type 2 charging gun cable with open-end tail, covering single-phase 16A / 32A and three-phase 16A / 32A builds from 3.5 kW to 22 kW.
- Single-phase 16A / 32A and three-phase 16A / 32A build coverage
- Representative power classes from 3.5 kW to 22 kW
- Open-end cable tail for EVSE, wallbox, and portable charger integration
- Cable length, tail termination, logo, and packaging can be customized
- Representative product gallery and demo video included
Type 2 EV Charging Gun Cable Overview
Custom Type 2 charging gun cable with open-end tail, covering single-phase 16A / 32A and three-phase 16A / 32A builds from 3.5 kW to 22 kW.

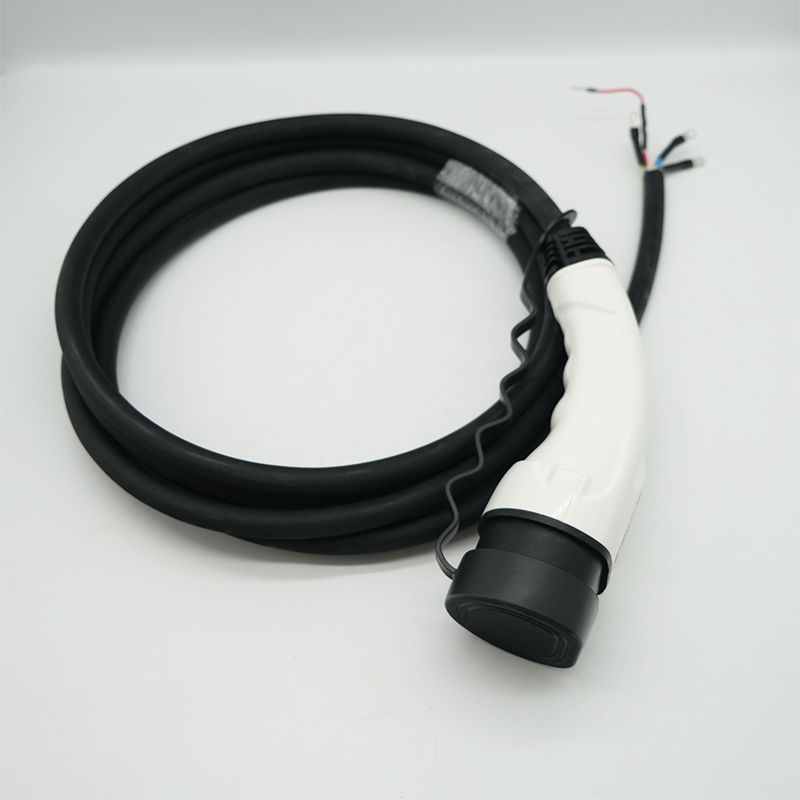

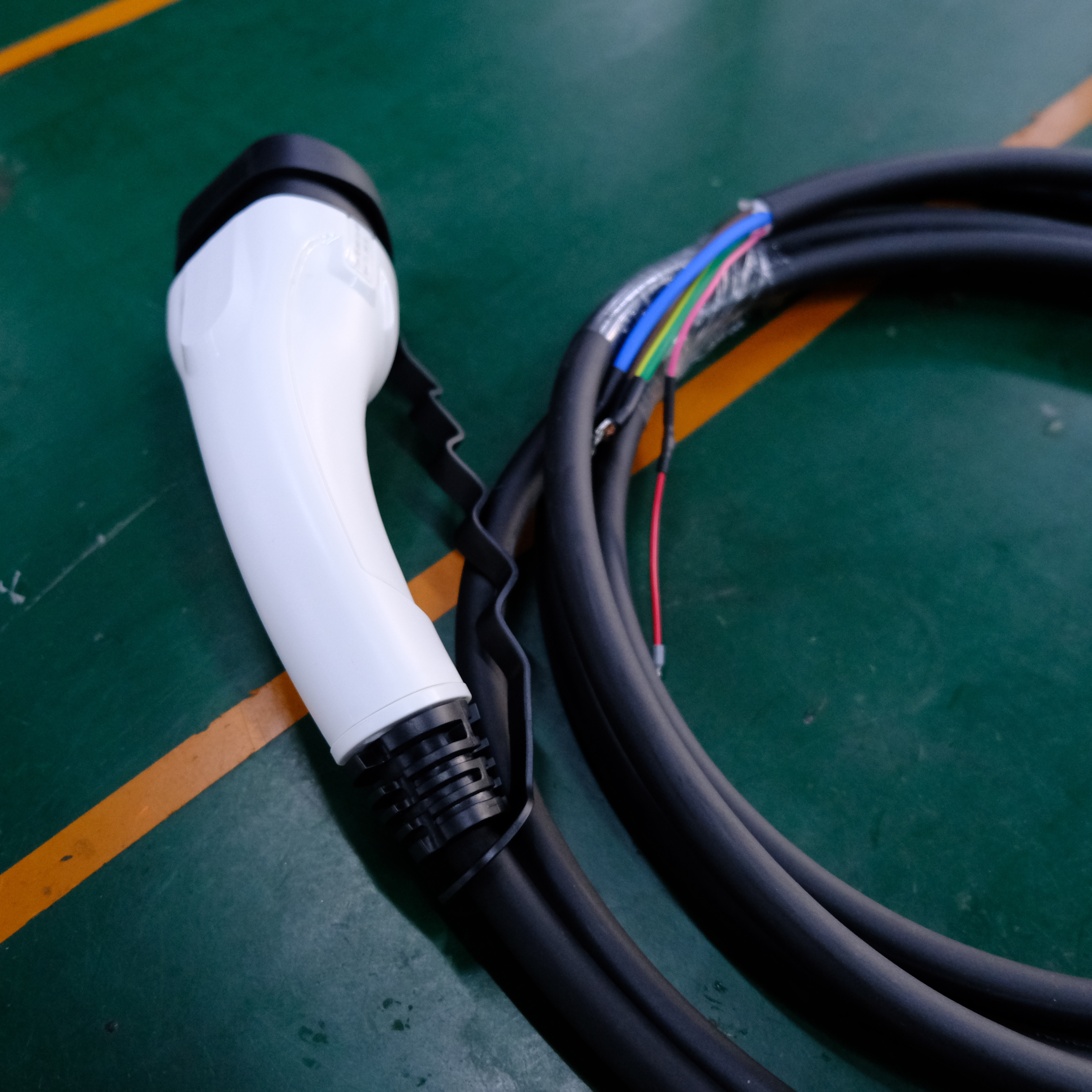

This Type 2 EV charging gun cable is arranged as a custom AC charging connector assembly with a Type 2 charging gun on one side and an open-end tail on the other side for wallbox, portable charger, and EVSE integration. The page covers common single-phase 16A / 32A and three-phase 16A / 32A builds, with representative power classes of 3.5 kW, 7 kW, 11 kW, and 22 kW. Cable length, tail processing, logo marking, and project details can be confirmed according to the approved drawing and sourcing requirement.
Single-phase 16A / 32A and three-phase 16A / 32A build coverage
Representative power classes from 3.5 kW to 22 kW
Open-end cable tail for EVSE, wallbox, and portable charger integration
Cable length, tail termination, logo, and packaging can be customized
Representative product gallery and demo video included
Key Attributes
| Product Type | EV charging gun cable |
|---|---|
| Standard | IEC 62196-2 Type 2 AC charging interface |
| Current Options | 16A / 32A |
| Phase Options | Single-phase and three-phase |
| Power Coverage | 3.5 kW / 7 kW / 11 kW / 22 kW |
| Cable End | Open-end tail for charger integration |
| Cable Length | Custom length available |
| Typical Application | Wallbox, portable charger, and AC EVSE assembly |
Current, Phase & Power Options
| Phase | Rated Current (A) | Typical Power (kW) | Cable End |
|---|---|---|---|
| 1-Phase | 16 | 3.5 | Open-end tail |
| 1-Phase | 32 | 7 | Open-end tail |
| 3-Phase | 16 | 11 | Open-end tail |
| 3-Phase | 32 | 22 | Open-end tail |
Custom Options
OEM and project-based changes can be arranged according to your drawing, header layout, and packaging request.
Cable length
Single-phase or three-phase configuration
16A or 32A current rating
Open-end termination treatment
Logo or label
Packaging
Common Applications
This cable type is commonly used in the applications below, depending on board layout, interface style, and installation space.
Energy & Power Equipment
Home Wallbox Cable Integration
Portable EV Charger Assembly
AC Charging Station Internal Wiring
Project Based EVSE And Charging Equipment Builds
Quality Inspection
Each harness can be checked before shipment according to project requirements.
Connector appearance inspection
Checked according to project requirements before shipment.
Cable length verification
Checked according to project requirements before shipment.
Open-end tail processing check
Checked according to project requirements before shipment.
Continuity and wiring confirmation
Checked according to project requirements before shipment.
Final appearance inspection
Checked according to project requirements before shipment.
What We Need for Quotation
To review your project faster, please send the sourcing and technical details below.
- Drawing or sample photo
- Cable length and pin count
- Connector type or header layout
- Pinout or wiring sequence
- Application and installation position
- Working voltage / current if available
- Estimated order quantity
- Labeling, packing, or sampling requirements
Free Sample for Qualified B2B Projects
For real B2B projects with clear requirements, ENJOE can prepare one custom sample for evaluation. The customer covers the international shipping cost.
View Sample ProgramFrequently Asked Questions
Can this page cover both single-phase and three-phase charging gun cable builds?
Yes. This page is intended as a custom product link for common single-phase 16A / 32A and three-phase 16A / 32A charging gun cable programs.
What power classes can be arranged?
Representative AC charging classes include 3.5 kW, 7 kW, 11 kW, and 22 kW, depending on the selected phase, current rating, and approved build details.
Is the cable supplied with an open-end tail?
Yes. The standard presentation on this page is a charging gun with an open-end cable tail for EVSE, charger, or wallbox integration.
What details should we send for quotation?
Please send the connector standard, current rating, phase requirement, cable length, tail termination request, and expected quantity.
More Products in This Category
Need a Custom Type 2 Charging Gun Cable?
Send the phase, current, cable length, tail termination requirement, and quantity. We can review the right Type 2 charging gun cable build for your project.
