EV Charging & New Energy Cable Assembly
Type 2 Extension Cable
Type 2 extension cable for AC charging reach extension with single-phase 16A / 32A and three-phase 16A / 32A build options.
- Type 2 plug and Type 2 socket extension build
- IEC 62196-2 interface reference
- Single-phase 16A / 32A and three-phase 16A / 32A options
- Representative power classes from 3.5 kW to 22 kW
- Custom cable length and logo support
Type 2 Extension Cable Overview
Type 2 extension cable for AC charging reach extension with single-phase 16A / 32A and three-phase 16A / 32A build options.

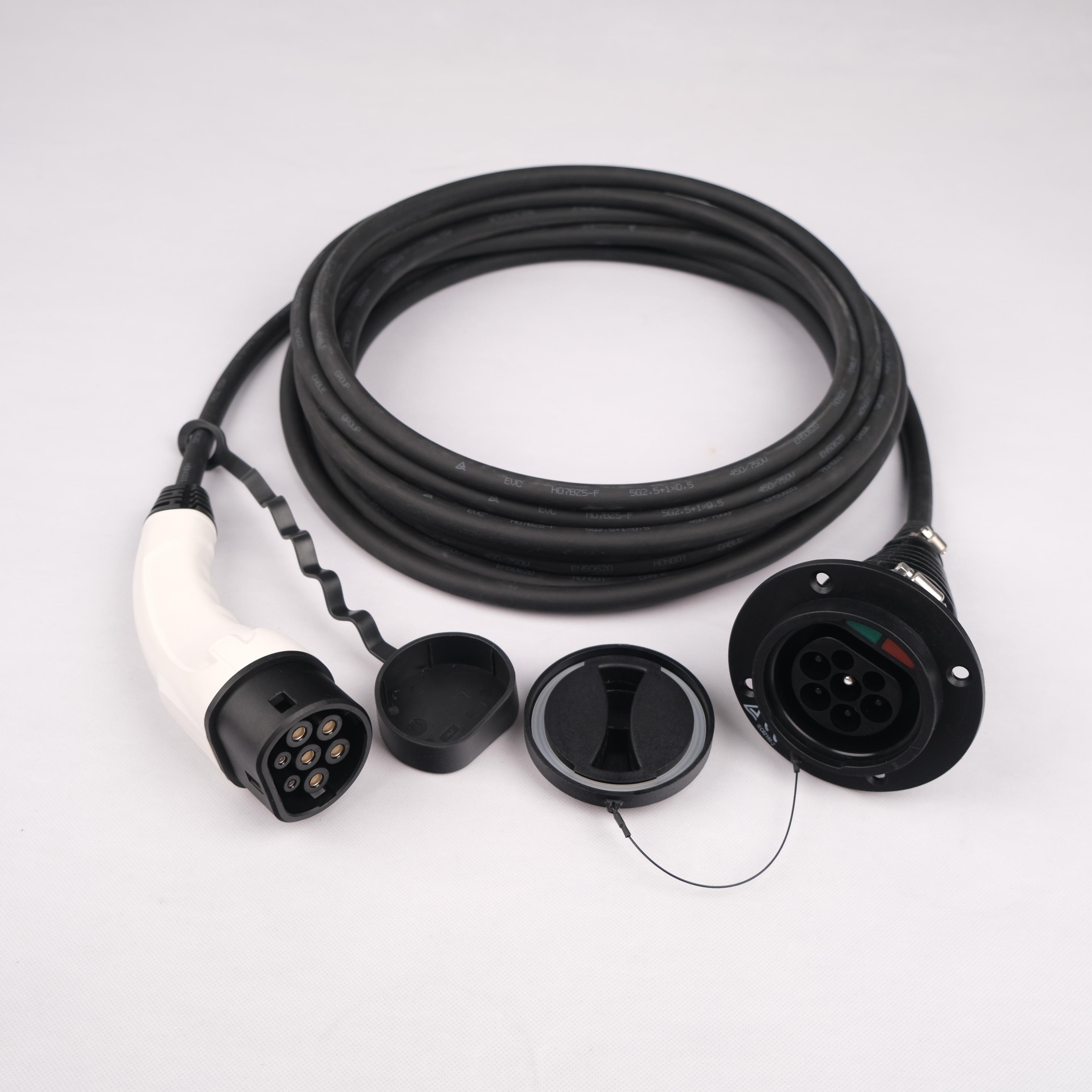

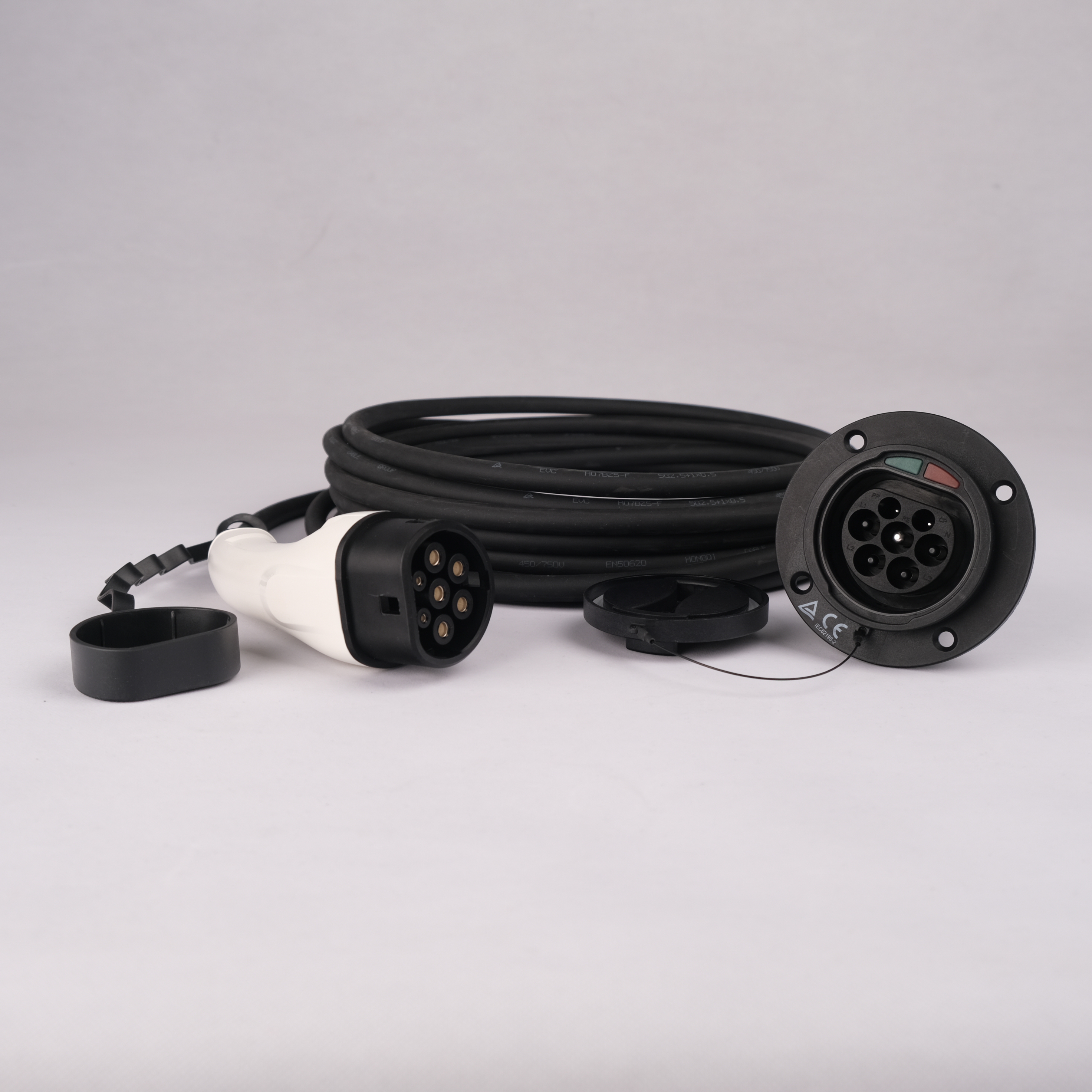

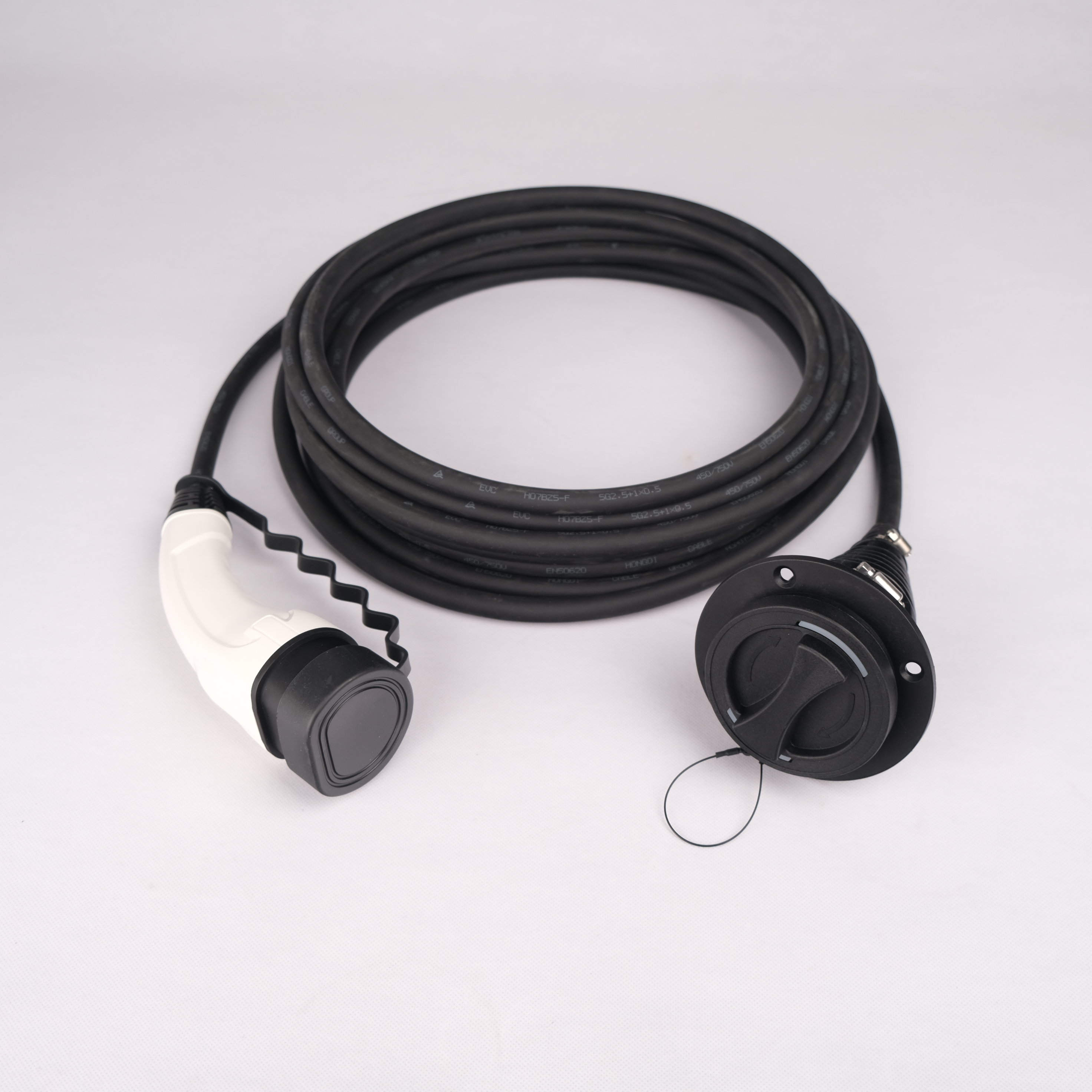

This Type 2 extension cable is used when additional reach is needed between the charging source and the vehicle-side connection point. The cable follows IEC 62196-2 interface requirements, uses a smooth shell structure, and can be supplied in 5 m standard length with project-based customization.
Type 2 plug and Type 2 socket extension build
IEC 62196-2 interface reference
Single-phase 16A / 32A and three-phase 16A / 32A options
Representative power classes from 3.5 kW to 22 kW
Custom cable length and logo support
Key Attributes
| Connector Format | Type 2 plug to Type 2 socket extension cable |
|---|---|
| Standard | IEC 62196-2 |
| Current Options | 16A / 32A |
| Phase Options | Single-phase and three-phase |
| Power Coverage | 3.5 kW / 7 kW / 11 kW / 22 kW |
| Operating Voltage | 90 V - 260 V or 300 V - 440 V |
| Cable Length | 5 m standard, custom length available |
| Mechanical Life | No-load plug in/out >10000 times |
| Operating Temperature | -30°C to +60°C |
Current, Phase & Power Options
| Phase | Rated Current (A) | Typical Power (kW) |
|---|---|---|
| 1-Phase | 16 | 3.5 |
| 1-Phase | 32 | 7 |
| 3-Phase | 16 | 11 |
| 3-Phase | 32 | 22 |
Custom Options
OEM and project-based changes can be arranged according to your drawing, header layout, and packaging request.
Cable length
Current rating 16 A or 32 A
Logo marking
Cable jacket style
Packaging
Common Applications
This cable type is commonly used in the applications below, depending on board layout, interface style, and installation space.
Energy & Power Equipment
Home Charging Reach Extension
Parking Position Charging Adjustment
Workshop And Test Charging Setup
Project Based AC Charging Extension Builds
Quality Inspection
Each harness can be checked before shipment according to project requirements.
Connector matching verification
Checked according to project requirements before shipment.
Continuity and open/short test
Checked according to project requirements before shipment.
Cable length inspection
Checked according to project requirements before shipment.
Shell and contact appearance inspection
Checked according to project requirements before shipment.
Final packaging check
Checked according to project requirements before shipment.
What We Need for Quotation
To review your project faster, please send the sourcing and technical details below.
- Drawing or sample photo
- Cable length and pin count
- Connector type or header layout
- Pinout or wiring sequence
- Application and installation position
- Working voltage / current if available
- Estimated order quantity
- Labeling, packing, or sampling requirements
Free Sample for Qualified B2B Projects
For real B2B projects with clear requirements, ENJOE can prepare one custom sample for evaluation. The customer covers the international shipping cost.
View Sample ProgramFrequently Asked Questions
Does this Type 2 extension cable support both single-phase and three-phase builds?
Yes. This page covers common single-phase 16A / 32A and three-phase 16A / 32A Type 2 extension cable programs.
Which representative power classes can be arranged?
Common reference builds include 3.5 kW, 7 kW, 11 kW, and 22 kW according to the selected phase and current rating.
Can the finished cable length be customized?
Yes. The common build is 5 m, and custom finished lengths can be reviewed according to your charging layout.
What should we send for quotation?
Please send the required length, phase, current rating, target market, and expected quantity.
More Products in This Category
Need a Custom Type 2 Extension Cable?
Send the required length, current rating, connector requirement, and quantity. We can review the right Type 2 extension cable for your application.
