EV Charging & New Energy Cable Assembly
Type 2 to GBT EV Charging Cable
Type 2 to GBT EV charging cable for AC charging programs with single-phase 16A / 32A and three-phase 16A / 32A build options.
- Type 2 charging side to GB/T vehicle side configuration
- IEC 62196-2 and GB/T 20234.2-2015 interface reference
- Single-phase 16A / 32A and three-phase 16A / 32A options
- Representative power classes from 3.5 kW to 22 kW
- Custom cable length and logo support

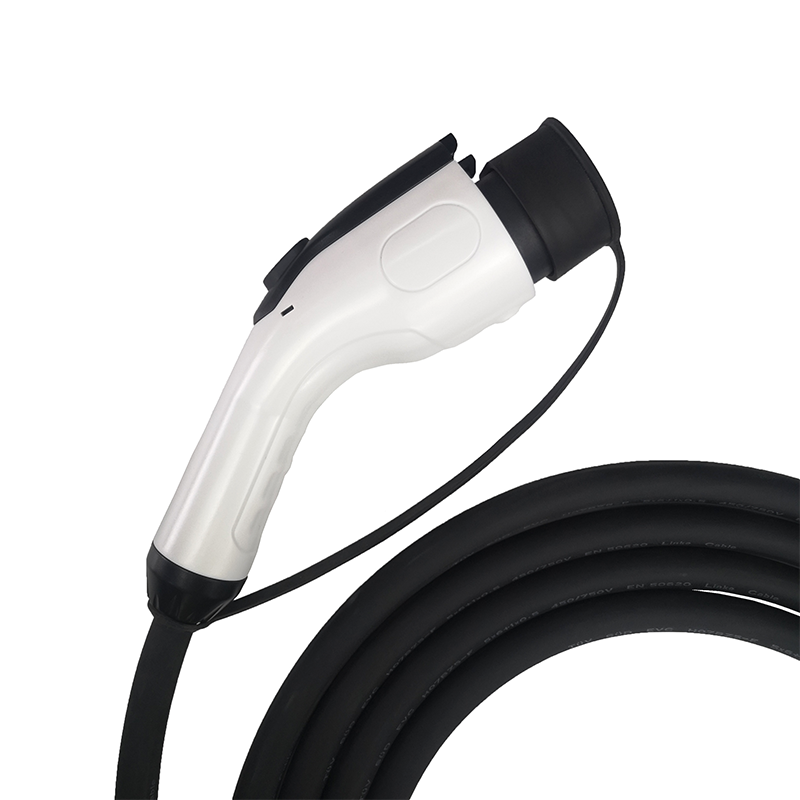

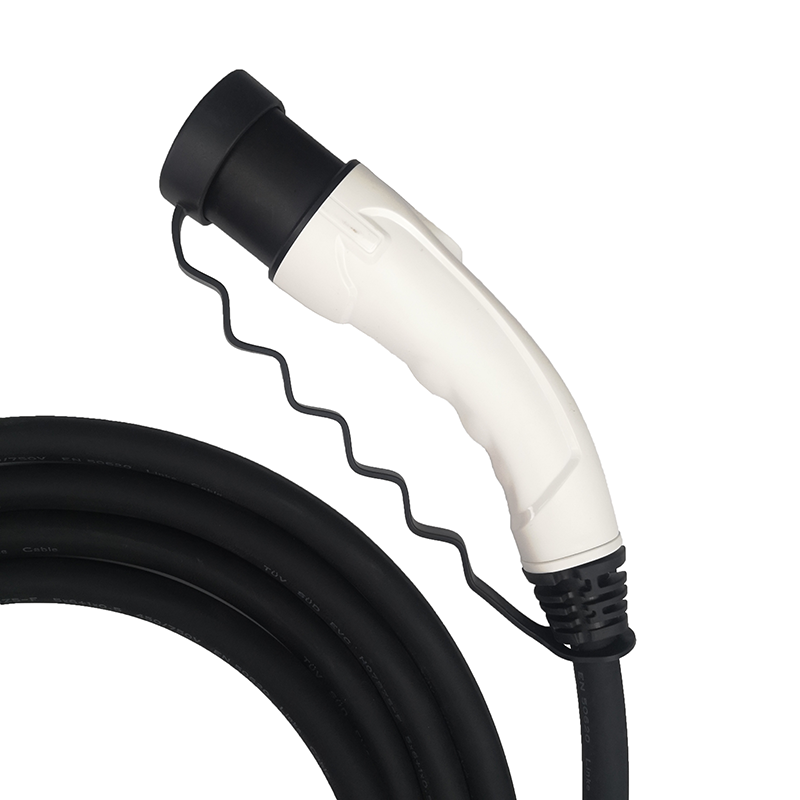

Type 2 to GBT EV Charging Cable Overview
Type 2 to GBT EV charging cable for AC charging programs with single-phase 16A / 32A and three-phase 16A / 32A build options.
This Type 2 to GBT EV charging cable is designed for AC charging projects that require a Type 2 charging-side interface and a GB/T vehicle-side connector. The product references IEC 62196-2 and GB/T 20234.2-2015 interface requirements, offers a smooth shell structure, and supports 5 m standard length with custom-length production.
Type 2 charging side to GB/T vehicle side configuration
IEC 62196-2 and GB/T 20234.2-2015 interface reference
Single-phase 16A / 32A and three-phase 16A / 32A options
Representative power classes from 3.5 kW to 22 kW
Custom cable length and logo support
Key Attributes
| Connector Format | Type 2 charging plug to GB/T vehicle connector |
|---|---|
| Standard | IEC 62196-2 / GB/T 20234.2-2015 |
| Current Options | 16A / 32A |
| Phase Options | Single-phase and three-phase |
| Power Coverage | 3.5 kW / 7 kW / 11 kW / 22 kW |
| Operating Voltage | 90 V - 260 V or 300 V - 440 V |
| Cable Length | 5 m standard, custom length available |
| Mechanical Life | No-load plug in/out >10000 times |
| Operating Temperature | -30?C to +60?C |
Current, Phase & Power Options
| Phase | Rated Current (A) | Typical Power (kW) |
|---|---|---|
| 1-Phase | 16 | 3.5 |
| 1-Phase | 32 | 7 |
| 3-Phase | 16 | 11 |
| 3-Phase | 32 | 22 |
Custom Options
OEM and project-based changes can be arranged according to your drawing, header layout, and packaging request.
Cable length
Current rating 16 A or 32 A
Logo marking
Cable jacket style
Packaging
Common Applications
This cable type is commonly used in the applications below, depending on board layout, interface style, and installation space.
Energy & Power Equipment
AC Charging Interface Matching Projects
Vehicle Side GB/T Charging Programs
Charging Equipment Development
Project Based Charging Cable Supply
Quality Inspection
Each harness can be checked before shipment according to project requirements.
Connector matching verification
Checked according to project requirements before shipment.
Continuity and open/short test
Checked according to project requirements before shipment.
Cable length inspection
Checked according to project requirements before shipment.
Shell and contact appearance inspection
Checked according to project requirements before shipment.
Final packaging check
Checked according to project requirements before shipment.
What We Need for Quotation
To review your project faster, please send the sourcing and technical details below.
- Drawing or sample photo
- Cable length and pin count
- Connector type or header layout
- Pinout or wiring sequence
- Application and installation position
- Working voltage / current if available
- Estimated order quantity
- Labeling, packing, or sampling requirements
Free Sample for Qualified B2B Projects
For real B2B projects with clear requirements, ENJOE can prepare one custom sample for evaluation. The customer covers the international shipping cost.
View Sample ProgramFrequently Asked Questions
Is this cable built for Type 2 to GB/T AC charging connection?
Yes. This page covers common single-phase 16A / 32A and three-phase 16A / 32A Type 2 to GB/T charging cable programs.
Which representative power classes can be arranged?
Common reference builds include 3.5 kW, 7 kW, 11 kW, and 22 kW according to the selected phase and current rating.
Can the cable length be customized?
Yes. The common build is 5 m, and custom finished lengths can be supplied after review.
What details are needed for quotation?
Please send the connector requirement, phase, current rating, cable length, destination market, and expected quantity.
More Products in This Category
Need a Type 2 to GBT Charging Cable?
Send the interface requirement, current rating, cable length, and quantity. We can review the right Type 2 to GBT charging cable for your project.
