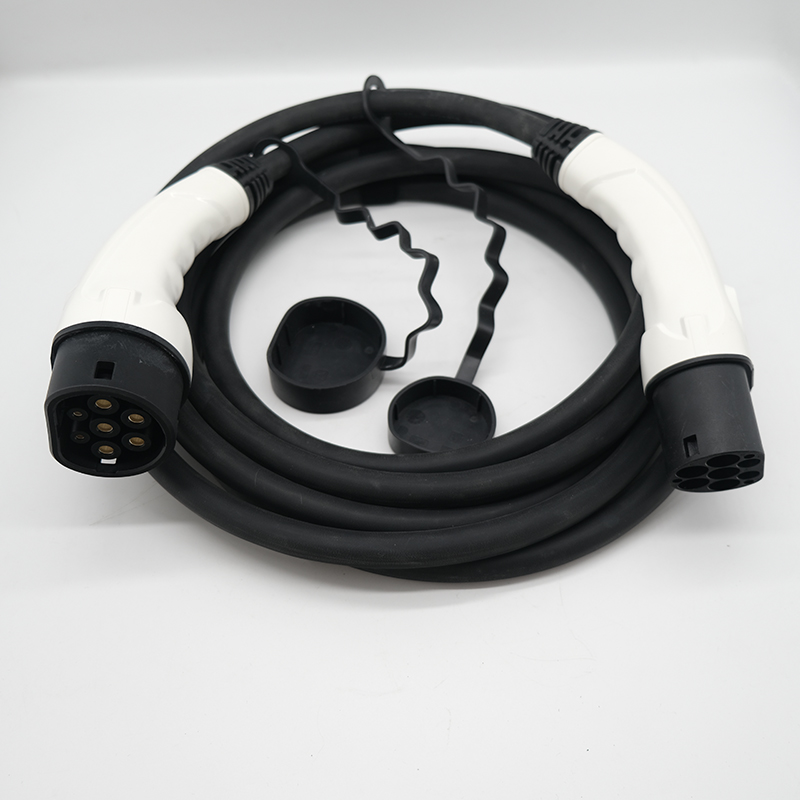

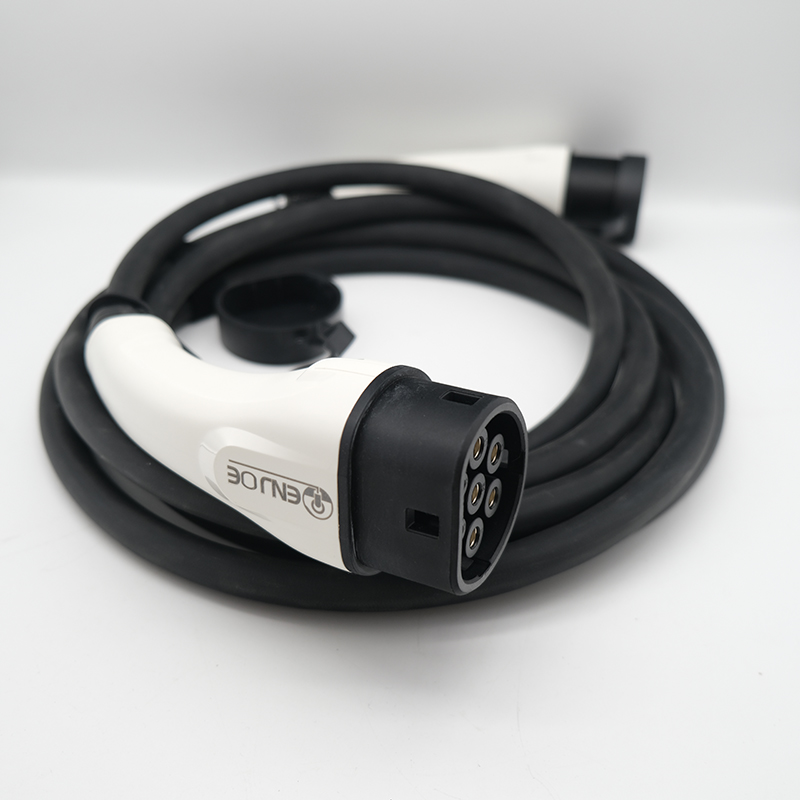

Type 2 to Type 2 EV Charging Cable
Type 2 to Type 2 EV charging cable for AC charging programs with single-phase 16A / 32A and three-phase 16A / 32A build options.
- IEC 62196-2 compliant Type 2 to Type 2 configuration
- Single-phase 16A / 32A and three-phase 16A / 32A options
- Representative power classes from 3.5 kW to 22 kW
- 5 m standard cable length with custom-length support
- Logo customization available
Type 2 to Type 2 EV Charging Cable Overview
Type 2 to Type 2 EV charging cable for AC charging programs with single-phase 16A / 32A and three-phase 16A / 32A build options.
This Type 2 to Type 2 EV charging cable is built for AC charging programs that use a Type 2 charging-side plug and Type 2 vehicle-side connector. The product follows IEC 62196-2 requirements, uses a smooth rivet-free shell structure, supports logo customization, and is commonly supplied in 5 m length with custom-length options.
IEC 62196-2 compliant Type 2 to Type 2 configuration
Single-phase 16A / 32A and three-phase 16A / 32A options
Representative power classes from 3.5 kW to 22 kW
5 m standard cable length with custom-length support
Logo customization available
Key Attributes
| Connector Format | Type 2 charging plug to Type 2 vehicle connector |
|---|---|
| Standard | IEC 62196-2 |
| Current Options | 16A / 32A |
| Phase Options | Single-phase and three-phase |
| Power Coverage | 3.5 kW / 7 kW / 11 kW / 22 kW |
| Operating Voltage | 90 V - 260 V or 300 V - 440 V |
| Cable Length | 5 m standard, custom length available |
| Mechanical Life | No-load plug in/out >10000 times |
| Operating Temperature | -30?C to +60?C |
Current, Phase & Power Options
| Phase | Rated Current (A) | Typical Power (kW) |
|---|---|---|
| 1-Phase | 16 | 3.5 |
| 1-Phase | 32 | 7 |
| 3-Phase | 16 | 11 |
| 3-Phase | 32 | 22 |
Custom Options
OEM and project-based changes can be arranged according to your drawing, header layout, and packaging request.
Cable length
Rated current 16 A or 32 A
Logo marking
Cable jacket style
Packaging
Common Applications
This cable type is commonly used in the applications below, depending on board layout, interface style, and installation space.
Energy & Power Equipment
Public AC Charging Stations
Home Wallbox Charging
Workplace Charging Points
Fleet And Shared Charging Programs
Quality Inspection
Each harness can be checked before shipment according to project requirements.
Connector matching verification
Checked according to project requirements before shipment.
Continuity and open/short test
Checked according to project requirements before shipment.
Cable length inspection
Checked according to project requirements before shipment.
Shell and contact appearance inspection
Checked according to project requirements before shipment.
Final packaging check
Checked according to project requirements before shipment.
What We Need for Quotation
To review your project faster, please send the sourcing and technical details below.
- Drawing or sample photo
- Cable length and pin count
- Connector type or header layout
- Pinout or wiring sequence
- Application and installation position
- Working voltage / current if available
- Estimated order quantity
- Labeling, packing, or sampling requirements
Free Sample for Qualified B2B Projects
For real B2B projects with clear requirements, ENJOE can prepare one custom sample for evaluation. The customer covers the international shipping cost.
View Sample ProgramFrequently Asked Questions
Does this Type 2 to Type 2 cable support both single-phase and three-phase builds?
Yes. This page covers common single-phase 16A / 32A and three-phase 16A / 32A Type 2 to Type 2 charging cable programs.
Which representative power classes can be arranged?
Common reference builds include 3.5 kW, 7 kW, 11 kW, and 22 kW according to the selected phase and current rating.
Can the finished cable length be customized?
Yes. The common build is 5 m, and custom finished lengths can be reviewed according to your charging layout.
What should we send for an accurate quote?
Please send the connector requirement, phase, rated current, cable length, target market, and expected quantity.
